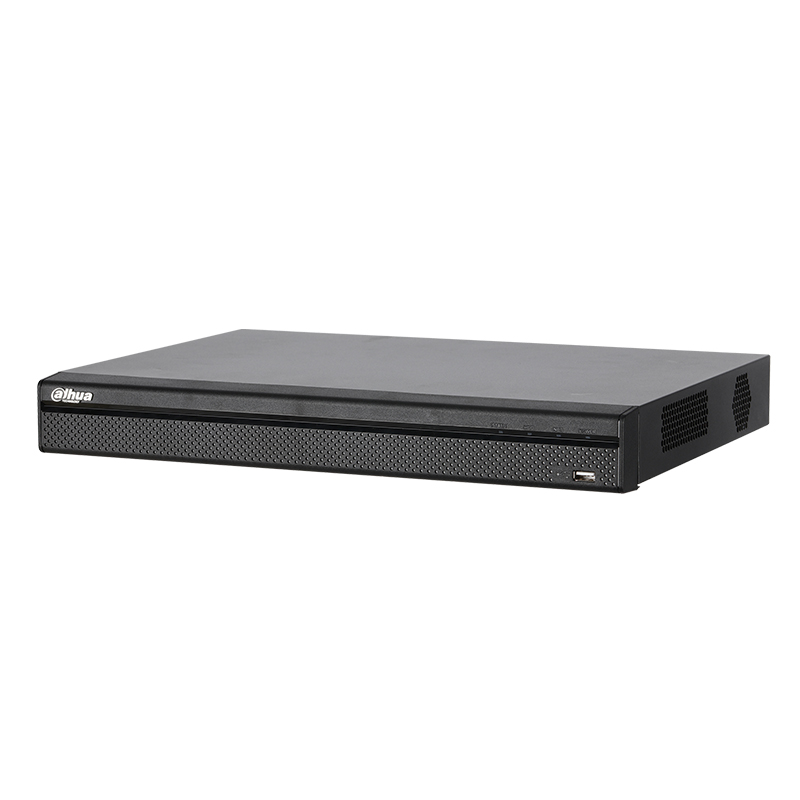

XVR4204/08/16AN

Print

Key Features



  • Embedded processor
  • H.264 video compression
  • Support HDCVI/ AHD/TVI/CVBS/IP video inputs
  • Max 5/10/18 channels IP camera inputs
  • Long transmission distance over coax cable
  • Support 1 SATA HDD, up to 6TB
Dahua
Description

<td class="xl66" style="

System Main Processor Embedded Processor
Operating System Embedded LINUX
Display Interface 1 HDMI ,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 4CH: 1/4/6
8CH: 1/4/8/9/16
16CH: 1/4/8/9/16/25
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input N/A
Relay Output N/A
Tracking Trigger Event N/A
Playback and Backup Playback 4CH: 1/4
8CH: 1/4/9
16CH: 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage Internal HDD 2 SATA Ports, up to 6TB capacity for each disk
HDD Mode Single
eSATA N/A
Auxiliary Interface Front Cover N/A
USB 2 USB Ports (2 USB 2.0)
RS232 N/A
RS485 1 Port, for PTZ Control
Third-party Support Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Audio and Video HDCVI Camera Input 4/8/16 Channel
IP Camera Input 4+1 Channel, each channel up to 2MP 8+2/16+2 Channel, each channel up to 5MP
Audio In/Out 1-Jan
Two-way Talk Reuse audio in/Out, RCA
Recording Compression H.264
Resolution 1080N(960*1080), 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate Main Stream: 4CH:1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
8/16CH:1080N(12fps)/720P(15fps)/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Sub steram:D1/CIF/QCIF(1~25/30fps)
Bit Rate 1Kbps ~ 6144Kbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network Interface 1 RJ-45 Port (100M)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4.1, CGI Conformant
Electrical Power Supply DC12V/4A
Power Consumption
Environmental Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions 0°C ~ +50°C (+32°F ~ +122°F), 0 ~ 90% RH
Construction Dimensions 1U, 375mm×285mm×55mm (14.7" x 11.2" x 2.2")
Net Weight 2.35kg (5.2 lb) (without HDD)
Gross Weight 3.2kg (7.05lb)
