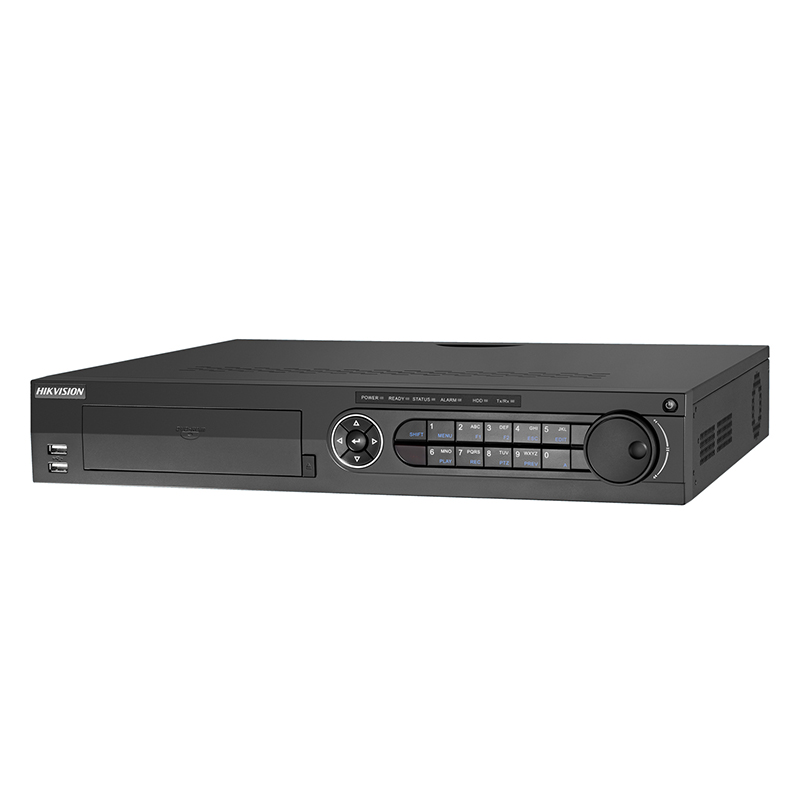

DS-8116HGHI-SH

Print

Key Features


• H.264 & Dual-stream video compression
• Support HD-TVI/analog/IP camera triple hybrid
• Support both HD-TVI and analog cameras with
adaptive access
• Full channel@720P resolution real-time recording
• HDMI and VGA output at up to 1920×1080P
resolution
• Long transmission distance over coax cable
• Support up to 16-ch synchronous playback
Hikvision
Description
Model      DS-8116HGHI-SH
Video/Audio input   IP video input   2-ch (up to 18-ch) Up to 2MP resolution
Two-way audio   1-ch, RCA (2.0 Vp-p, 1kΩ)
Video/Audio output   Recording resolution

Main stream: 1080P (non-real-time) / 720P / WD1/ VGA / 4CIF / CIF;Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
CVBS output   1-ch, BNC (1.0 Vp-p, 75 Ω)
Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
HDMI output   1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
VGA output   1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Audio output   2-ch, RCA (Linear, 1KΩ, for VGA output and CVBS output respectively)
Playback resolution

1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Synchronous playback   16-ch
Hard disk   SATA   8 SATA interfaces for 8 HDDs
eSATA   1 eSATA interface
Capacity   Up to 6 TB capacity for each disk
External interface   Network
interface  		 2; 10M / 100M / 1000M self-adaptive Ethernet interfaces

Serial interface

1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface
USB interface   3 USB2.0 interfaces
Alarm in   16
Alarm out   4
Others   Power supply   100 ~ 240VAC, 47 ~ 63HZ
Consumption
(without hard disk or
DVDR/W)  		 ≤ 55W
  Working temperature   -10 ~ +55
Working humidity   10 % ~ 90 %
Chassis   19-inch rack-mounted 2U chassis



  Dimensions
(W × D × H)  		 445× 470 × 90mm
Weight   ≤ 8 Kg (17.64 lb) ( without hard disk or DVD-
R/W )
