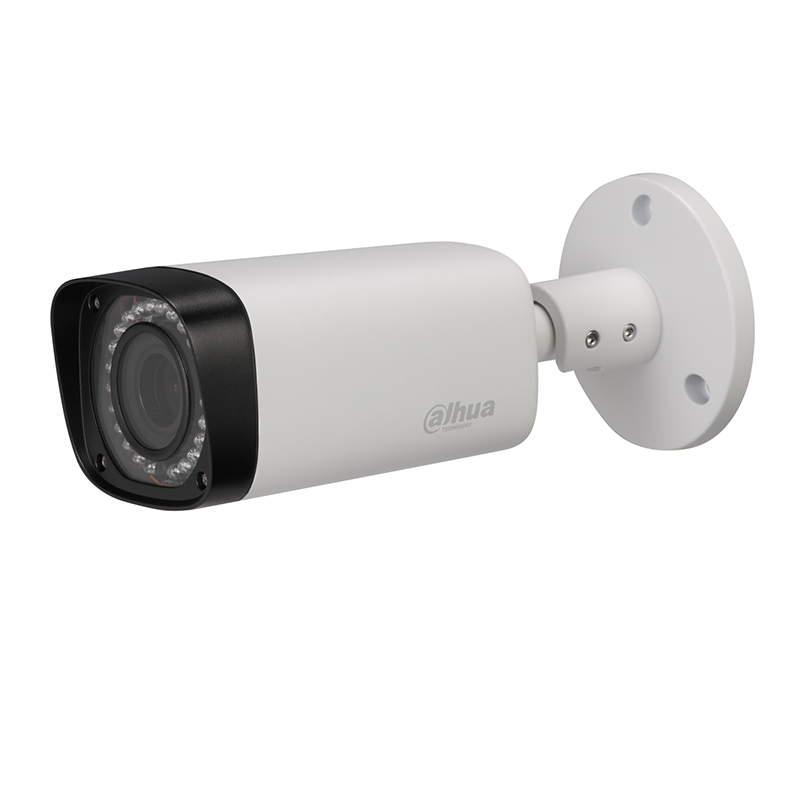

IPC-HFW2320R-ZS/VFS
Key Features
- 1/3” 3Megapixel progressive CMOS
- H.264+ & H.264 dual-stream encoding
- 20fps@3M(2048x1536) & 25/30fps@2M (1920×1080)
- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- Micro SD card slot, up to 128GB
- 2.7~12mm varifocal lens
- Max IR LEDs Length 30m
- IP67, PoE
Description
| Camera | Image Sensor | 1/3” 3Megapixel progressive CMOS | ||||
| Effective Pixels | 2304(H) x1536(V) | |||||
| RAM/ROM | 256MB/16MB | |||||
| Scanning System | Progressive | |||||
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s | |||||
| Minimum Illumination | 0.1Lux/F1.4(Color), 0Lux/F1.4(IR on) | |||||
| S/N Ratio | More than 50dB | |||||
| IR Distance | Distance up to 30m | |||||
| IR On/Off Control | Auto/ Manual | |||||
| IR LEDs | 4 | |||||
| Lens | Lens Type | Motorized(-ZS),Manual(-VFS) | ||||
| Mount Type | Board-in | |||||
| Focal Length | 2.7mm~12mm | |||||
| Max. Aperture | F1.4 | |||||
| Angle of View | H:87°~29°, V:42°~15° | |||||
| Focus Control | Motorized(-ZS),Manual(-VFS) | |||||
| Close Focus Distance | 0.3m | |||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify | |
| W | 62m(203ft) | 25m(82ft) | 12m(39ft) | 6m(20ft) | ||
| T | 175m(574ft) | 70m(230ft) | 35m(115ft) | 18m(59ft) | ||
| PTZ | Pan/Tilt Range | Pan:0° ~360 ° ;Tilt:0° ~90° ;Rotation:0° ~360° | ||||
| Video | Compression | H.264+/H.264 | ||||
| Streaming Capability | 2 Streams | |||||
| Resolution | 3M(2304×1296)(2048×1536)/ | |||||
| 1080P(1920x1080)/1.3M(1280x960)/ | ||||||
| 720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240) | ||||||
| Frame Rate | 3M(1~20fps) | |||||
| D1/CIF(1 ~ 25/30fps) | ||||||
| Bit Rate Control | CBR/VBR | |||||
| Bit Rate | H264:24K ~ 8192Kbps | |||||
| Day/Night | Auto(ICR) / Color / B/W | |||||
| BLC Mode | BLC / HLC / DWDR | |||||
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | |||||
| Gain Control | Auto/Manual | |||||
| Noise Reduction | 3D DNR | |||||
| Motion Detetion | Off / On (4 Zone, Rectangle) | |||||
| Region of Interest | Off / On (4 Zone) | |||||
| Electronic Image Stabilization(EIS) | N/A | |||||
| Smart IR | Support | |||||
| Digital Zoom | 16x | |||||
| Flip | 0°/90°/180°/270° | |||||
| Mirror | Off / On | |||||
| Privacy Masking | Off / On (4 Area, Rectangle) | |||||
| Audio | Compression | N/A | ||||
| Network | Ethernet | RJ-45 (10/100Base-T) | ||||
| Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; | |||||
| DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; | ||||||
| Bonjour;802.1x;Multicast;ICMP;IGMP; | ||||||
| Interoperability | ONVIF, PSIA, CGI | |||||
| Streaming Method | Unicast / Multicast | |||||
| Max. User Access | 10 Users/20 Users | |||||
| Edge Storage | NAS(Network Attached Storage) | |||||
| Local PC for instant recording | ||||||
| Micro SD Card 128GB | ||||||
| Web Viewer | IE, Chrome, Firefox, Safari | |||||
| Management Software | Smart PSS, DSS, Easy4ip | |||||
| Smart Phone | IOS, Android | |||||
| Certifications | Certifications | CE (EN 60950:2000) | ||||
