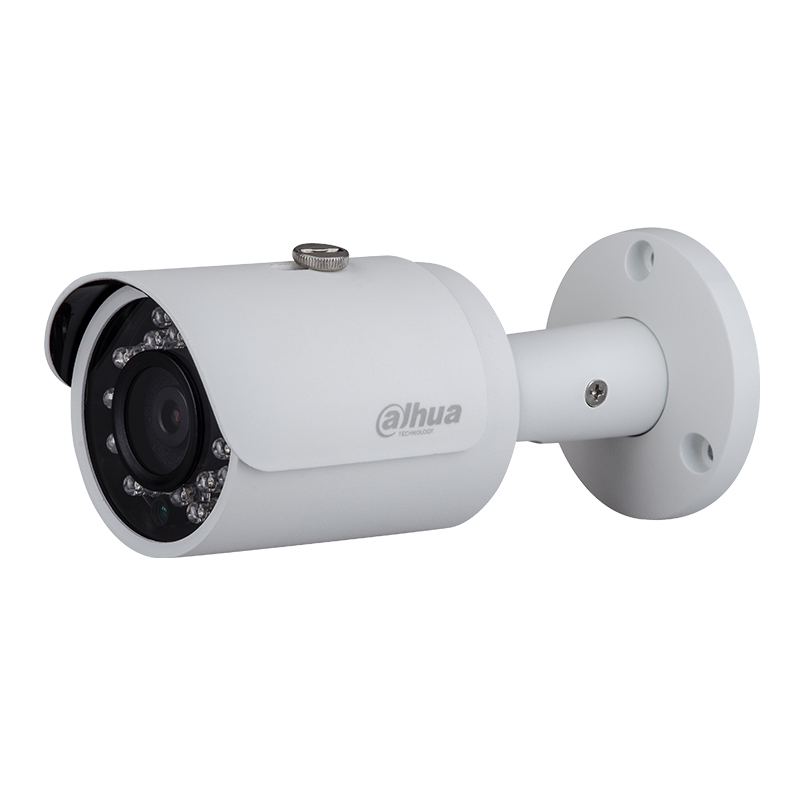

IPC-HFW1120S-S3
Key Features
- 1/3” 1.3Megapixel progressive CMOS
- H.264+ & H.264 dual-stream encoding
- 25/[email protected](1280×960)
- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 2.8 mm fixed lens (3.6mm optional)
- Max IR LEDs Length 30m
- IP67, PoE
Description
| Camera | Image Sensor | 1/3” 1.3Megapixel progresive CMOS | |||||||
| Effective Pixels | 1280(H) x960(V) | ||||||||
| RAM/ROM | 256MB/16MB | ||||||||
| Scanning System | Progressive | ||||||||
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s | ||||||||
| Minimum Illumination | 0.5Lux/F2.5(Color), 0Lux/F2.5(IR on) | ||||||||
| S/N Ratio | More than 50dB | ||||||||
| IR Distance | Distance up to 30m(98ft) | ||||||||
| IR On/Off Control | Auto/ Manual | ||||||||
| IR LEDs | 18 | ||||||||
| Lens | Lens Type | Fixed | |||||||
| Mount Type | Board-in | ||||||||
| Focal Length | 2.8 mm (3.6 mm optional) | ||||||||
| Max. Aperture | F2.5/F2.5 | ||||||||
| Angle of View | H:97.5°/73.5°, V:71°/53° | ||||||||
| Focus Control | Fixed | ||||||||
| Close Focus Distance | N/A | ||||||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||
| 2.8 mm | 44m(144ft) | 17m(56ft) | 9m(30ft) | 4m(13ft) | |||||
| 3.6 mm | 35m(115ft) | 14m(46ft) | 7m(23ft) | 4m(13ft) | |||||
| PTZ | Pan/Tilt Range | Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° | |||||||
| Video | Compression | H.264+/H.264 | |||||||
| Streaming Capability | 2 Streams | ||||||||
| Resolution | 1.3M(1280×960)/720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240) | ||||||||
| Frame Rate | 1.3M (1 ~ 25/30fps) | ||||||||
| D1/CIF(1 ~ 25/30fps) | |||||||||
| Bit Rate Control | CBR/VBR | ||||||||
| Bit Rate | H264:24K ~ 8192Kbps | ||||||||
| Day/Night | Auto(ICR) / Color / B/W | ||||||||
| BLC Mode | BLC / HLC / DWDR | ||||||||
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | ||||||||
| Gain Control | Auto/Manual | ||||||||
| Noise Reduction | 3D DNR | ||||||||
| Motion Detetion | Off / On (4 Zone, Rectangle) | ||||||||
| Region of Interest | Off / On (4 Zone) | ||||||||
| Electronic Image | Support | ||||||||
| Smart IR | Support | ||||||||
| Digital Zoom | 16x | ||||||||
| Flip | 0°/90°/180°/270° | ||||||||
| Mirror | Off / On | ||||||||
| Privacy Masking | Off / On (4 Area, Rectangle) | ||||||||
| Audio | Compression | N/A | |||||||
| Network | Ethernet | RJ-45 (10/100Base-T) | |||||||
| Protocol |
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE; IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP; |
||||||||
| Interoperability | ONVIF, PSIA, CGI | ||||||||
| Streaming Method | Unicast / Multicast | ||||||||
| Max. User Access | 10 Users/20 Users | ||||||||
| Edge Storage | NAS(Network Attached Storage) | ||||||||
| Local PC for instant recording | |||||||||
| Web Viewer | IE, Chrome, Firefox, Safari | ||||||||
| Management Software | Smart PSS, DSS,Easy4ip | ||||||||
| Smart Phone | iPhone, iPad, Android Phone | ||||||||
Certific
