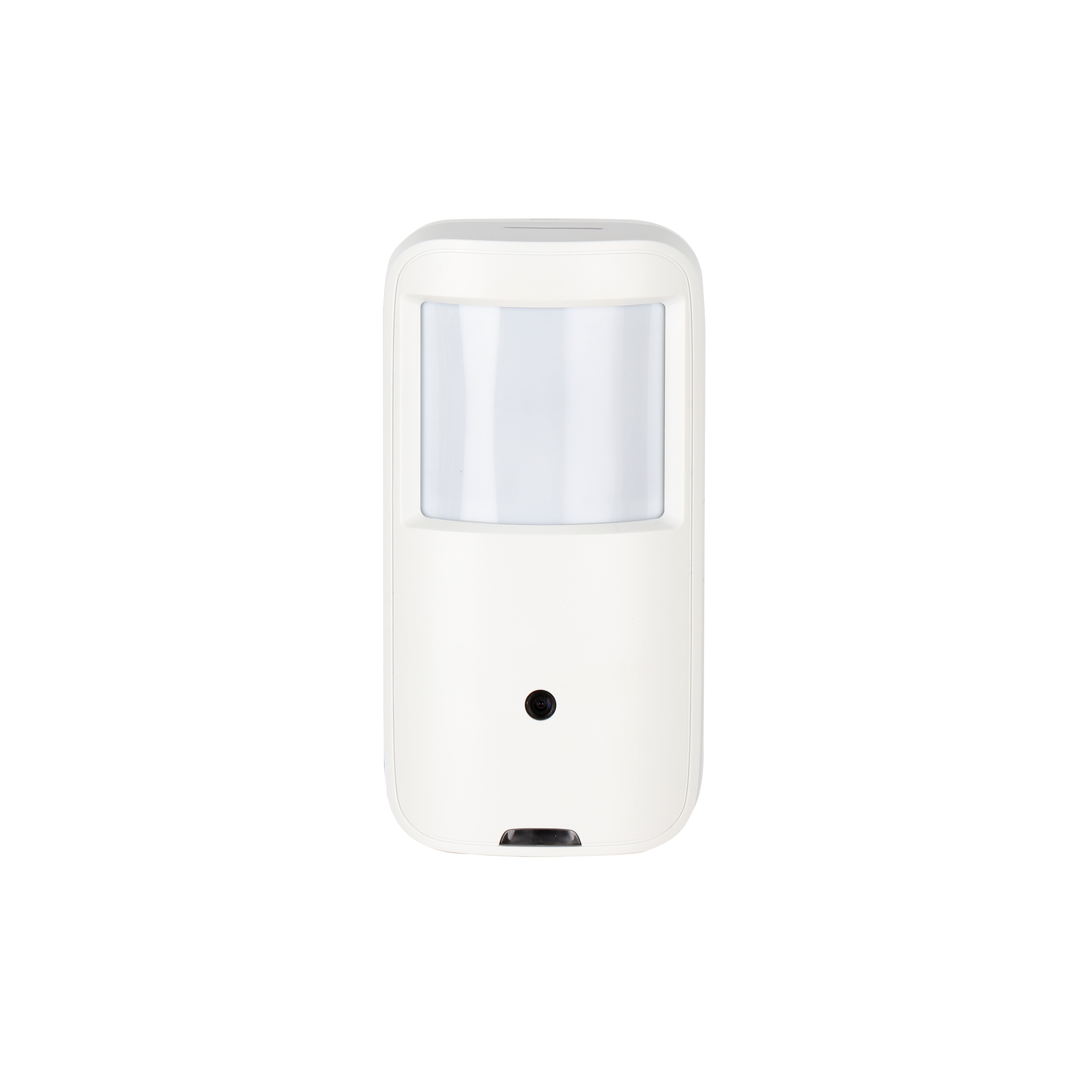

HAC-HUM1220A-PIR
Key Features
- Max 30fps@1080P
- HD and SD output switchable
- 2.8mm fixed lens
- 12m/100°detecting range/angle
- Two level detection sensitivity adjustable
- Built-in tamper switch
- DC12V
Description
| Camera | Image Sensor | 1/2.9" CMOS |
| Effective Pixels | 1920(H)×1080(V), 2MP | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | PAL: 1/25~1/100000s | |
| NTSC: 1/30~1/100000s | ||
| Minimum Illumination | 0.02Lux/F2.0(Color), 0.002Lux/F2.0(B/W) | |
| S/N Ratio | More than 65dB | |
| Lens | Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in | |
| Focal Length | 2.8mm | |
| Max Aperture | F2.0 | |
| Angle of View | H: 100.5° | |
| Focus Control | N/A | |
| Close Focus Distance | 500mm | |
| 19.7 | ||
| Pan/Tilt/Rotation | Pan/Tilt/Rotation | Pan: 0° ~ 180° |
| Tilt: 0° ~ 180° | ||
| Rotation: 0° ~ 360° | ||
| Video | Resolution | 1080P (1920×1080) |
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P | |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) | |
| Day/Night | Auto (Electronic) / Manual | |
| OSD Menu | Multi-language | |
| BLC Mode | BLC / HLC / DWDR | |
| WDR | DWDR | |
| Gain Control | AGC | |
| Noise Reduction | 2D | |
| White Balance | Auto / Manual | |
| PIR | Detection | Passive infrared |
| Detection Range | 12mx12m, 100°, 19zones | |
| Alarm prompt | Red led, can be set to switch off | |
| Sensitivity | Two level (jumper) | |
| Pet immunity | ≤18Kg | |
| Resistance light | 6500LUX | |
| Installation height | Defualt bracket, wall mount, 2.2-2.5m | |
| Certifications | Certifications | CE (EN55032, EN55024, EN50130-4) |
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | ||
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | ||
| Interface | Audio Interface | N/A |
| Electrical | Power Supply | 12V DC ±25% |
| Power Consumption | Max 0.7W (12V DC, IR on) | |
| Environmental | Operating Conditions | -10°C ~ +50°C (14°F ~ +122°F) / Less than 90% RH |
| * Start up should be done at above -10°C (14°F) | ||
| Storage Conditions | -10°C ~ +50°C (14°F ~ +122°F) / Less than 90% RH | |
| Ingress Protection &Vandal Resistance | N/A | |
| Construction | Casing | Plastic |
| Dimensions | 120mm×62mm×58mm (4.72"×2.44"×2.28") | |
| Net Weight | 0.13kg (0.29lb) | |
| Gross Weight | 0.18kg (0.40lb) |
