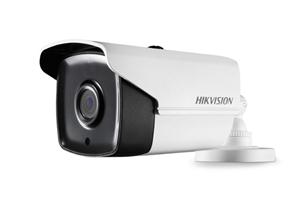

DS-2CE16D8T-IT1/IT3/IT5

Key features

Description

DS-2CE16D8T-IT1

Camera
Image Sensor:	\|	2MP CMOS Image Sensor
Signal System:	\|	PAL/NTSC
Effective Pixels:	\|	1920(H)*1080(V)
Min. Illumination:	\|	Color: 0.005 Lux @ (F2.0 AGC ON), 0 Lux with IR
Shutter Time:	\|	1/25(1/30) s to 1/50,000 s
Lens:	\|	2.8 mm, 3.6 mm, 6 mm, 8 mm fixed focal lens
Lens Mount:	\|	M12
Adjustment Range:	\|	Pan: 0° to 360°, Tilt: 0° to 180, Rotate: 0° to 360°
Day& Night:	\|	IR cut filter with auto switch
Wide Dynamic Range:	\|	120dB
Video Frame Rate:	\|	1080p@25fps/1080p@30fps
HD Video Output:	\|	1 Analog HD output
Synchronization:	\|	Internal Synchronization
Up the Coax:	\|	Support
Menu
Auto White Balance:	\|	Auto/MWB
BLC:	\|	Support
AGC:	\|	Support
Language:	\|	English/Chinese
Function:	\|	Brightness, Sharpness, Mirror, Smart IR
General
Operating Conditions:	\|	-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:	\|	12 VDC±25%
Power Consumption:	\|	Max. 3.5 W
Weather Proof:	\|	IP67
IR Range:	\|	Up to 20m
Communication :	\|	Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:	\|	86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″)
Weight:	\|	Approx. 680g (1.5lb)

Camera
Image Sensor:	\|	2MP CMOS Image Sensor
Signal System:	\|	PAL/NTSC
Effective Pixels:	\|	1920(H)*1080(V)
Min. Illumination:	\|	Color: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time:	\|	1/25(1/30) s to 1/50,000 s
Lens:	\|	2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
Lens Mount:	\|	M12
Adjustment Range:	\|	Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
Day& Night:	\|	IR cut filter with auto switch
Wide Dynamic Range:	\|	120dB
Video Frame Rate:	\|	1080p@25fps/1080p@30fps
HD Video Output:	\|	1 Analog HD output
Synchronization:	\|	Internal Synchronization
Menu
D/N Mode:	\|	Auto / Color / B/W
Auto White Balance:	\|	Auto/MWB
BLC:	\|	Support
AGC:	\|	Support
Language:	\|	English/Chinese
Function:	\|	Brightness, Sharpness, Mirror, Smart IR
General
Operating Conditions:	\|	-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:	\|	12 VDC±25%
Power Consumption:	\|	Max. 4 W
Weather Proof:	\|	IP67
IR Range:	\|	Up to 40m
Communication :	\|	Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:	\|	86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″)
Weight:	\|	Approx. 680g (1.5lb)

Camera
Image Sensor:	\|	2MP CMOS Image Sensor
Signal System:	\|	PAL/NTSC
Effective Pixels:	\|	1920(H)*1080(V)
Min. Illumination:	\|	Color: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time:	\|	1/25(1/30) s to 1/50,000 s
Lens:	\|	3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
Lens Mount:	\|	M12
Adjustment Range:	\|	Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
Day& Night:	\|	IR cut filter with auto switch
Wide Dynamic Range:	\|	120dB
Video Frame Rate:	\|	1080p@25fps/1080p@30fps
HD Video Output:	\|	1 Analog HD output
Synchronization:	\|	Internal Synchronization
Menu
D/N Mode:	\|	Auto / Color / B/W
Auto White Balance:	\|	Auto/MWB
BLC:	\|	Support
AGC:	\|	Support
Language:	\|	English/Chinese
Function:	\|	Brightness, Sharpness, Mirror, Smart IR
General
Operating Conditions:	\|	-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:	\|	12 VDC±25%
Power Consumption:	\|	Max. 6 W
Weather Proof:	\|	IP67
IR Range:	\|	Up to 80m
Communication :	\|	Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:	\|	86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″)
Weight:	\|	Approx. 680g (1.5lb)
